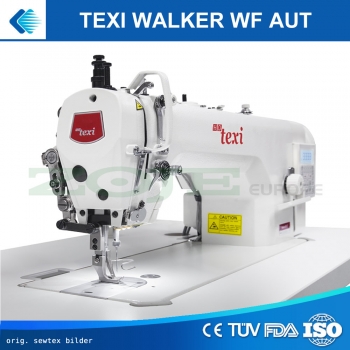

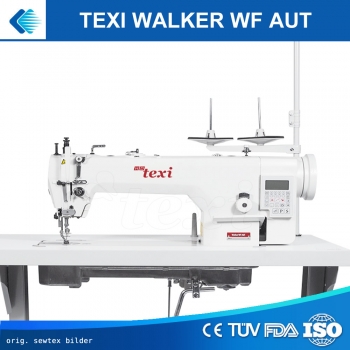

TEXI WALKER WF AUT PREMIUM
Full Automatic - Full Funktionen
die erstklassige 1-Nadel Steppstichmaschine mit Zweifachtransport / - Walking Foot Serien
Entwickelt für die Industrie. Zum Nähen von schweren und sehr schweren Stoffen. Ideal für Polsterer, Täschner, Hersteller von Lederbekleidung, Autositzen (Automotiv) usw.
Nähgeschwindigkeit 2000 RPM, Integrierter Motor, Anfangsstichkontrolle, Max. Stichlänge 8.0 mm, Fußlüftung 16 mm, Nadelpositionierung, Automatische Fußlüftung, Automatischer Rigel, Automatischer Fadenabschneider, LED-Beleuchtung des Arbeitsfeldes

Technische Daten und Ausstattung:
1-Nadel Steppstichmaschine für Stoffe: mittlere und schwere
Art des Transportes: bottom and walking foot
Automatischer Fadenabschneider: ja
Automatische Nadelpositionierung: Ja
Automatische Fußlüftung: Ja
Automatischer Rigel: Ja
Anfangsstichkontrolle: Ja
Schmiersystem: zentral
LED-Beleuchtung des Arbeitsfeldes: Ja
Max. Stichlänge : 8.0 mm
Fußlüftung : 16 mm
Max. Nähgeschwindigkeit : 2000 Stiche/Min.
Integrierter Motor: Ja
Empfohlene Fadenstärke: max bis 15-20
Nadelsystem : 135X17, DPx17
Tischplatte: Standard 105 x 50 cm
Garantie: 24 Monate
Satz : Komplett mit Tisch made in Germany
Montagekosten können wir überbehmen gegen Aufpreis von 100 EUR inkl. Schullung
Technical specification:
- compound feed (bottom and presser foot feed)
- stitch length up to 8 mm
- presser feet lifting up to 16 mm
- maximum sewing speed 2.000 s.p.m.
- 33.5 cm clearance between needle bar and machine's arm
- large hook (vertical axis)
- thread trimmer
- high fabric clearance under presser foot is 8mm
- reverse feeding with programmed size of the initial and final bartack
- needle positioning
- Integrated energy-saving LED lamp for lighting of working field
- needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
Angeboten im Paket PREMIUM EX.
STAND HD PREMIUM EX SILVER - hochwertiges und stabiles Stahlgestell für schwere Maschinen, mit regulierbaren Höhe (69-83 cm) und einer Halterung für den Öler. Pulverbeschichtet in Silber RAL 9006 und damit farblich exakt auf die Stühle Ergolinia abgestimmt.
TABLE TOP PREMIUM EX - Tischplatte aus 30-schichtigem Birkensperrholz höchster Qualität mit hervorragender Vibrationsdämmung. Die Oberfläche der Platte PREMIUM EX ist mit speziellem Laminat (1 mm dick) beschichtet, das stoß- und abriebfest, sowie öl- und wasserunempfindlich ist. Die Seiten sind durch eine ABS-Kante geschützt. Die Tischplatten TEXI PREMIUM EX enthalten keine schädlichen Stoffe.
TEXI WALKER WF AUT PREMIUM
1-needle lockstitch machine with the compound feed - bottom and walking feed), Adjustable height of walking feet and large hook and spool with increased capacity. Equipped with AC Servo motor and needle positioning (top - bottom).
Designed to work in the industry. For sewing heavy and very heavy materials. Perfect for upholsterers, leatherworkers, leather garment and car seat (automotive) producers, etc.
Machine head with built-in AC Servo motor and control box (Mechatronic). Direct Drive Servo Motor used in machine eliminates the need for belts. It uses minimal power while idle, power increases only when the treadle is depressed, thus provides an increase in efficiency, quick start-up, eliminates noise (compared with a standard clutch motor) and saves energy.
Technical specification:
- compound feed (bottom and presser foot feed)
- stitch length up to 8 mm
- presser feet lifting up to 16 mm
- maximum sewing speed 2.000 s.p.m.
- 33.5 cm clearance between needle bar and machine's arm
- large hook (vertical axis)
- thread trimmer
- high fabric clearance under presser foot is 8mm
- reverse feeding with programmed size of the initial and final bartack
- needle positioning
- Integrated energy-saving LED lamp for lighting of working field
- needles system 135x17 or 135x17 SERV7, with correct needle points, depending on the fabric.
1-needle lockstitch for materials medium and heavy
Type of feed bottom and walking foot
Automatic thread trimming yes
Automatic needle positioning yes
Automatic foot lifter yes
Automatic bartacking yes
Wiper no
Stitch compensation button yes
Type of lubrication central circuit
Side trimmer no
LED lighting of working field yes
Max. stitch length 8.0 mm
Presser foot lift height 16 mm
Max. sewing speed 2000 s.p.m.
Built-in AC Servo motor yes
Needle system 135X17
Table top standard 105 x 50 cm
Warranty period 24 months
Kit complete set with Table made in Germany
TEXI WALKER WF AUT PREMIUM
Автоматическая прямострочная швейная машина - обивочная, кожевенная, c нижним транспортом и шагающей лапкой, большим челноком, встроенным сервомотором
1-игольная прямострочная швейная машина с нижним транспортом и шагающей лапкой, регулируемой высотой подъема лапки и большим челноком. Оснащена серводвигателем, функция позиции иглы (верх-низ).
Предназначена для использования в промышленности. Для пошива тяжелых материалов. Идеально подходит обойщикам, кожевникам, производителям кожаной одежды, автомобильных сидений и т.п.
Прямой привод исключает необходимость использования ремней. Сервомотор использует минимальное количество энергии и работает только тогда, когда машина шьет (без холостого хода). Не смотря на то, что его мощность намного выше, чем мощность до сих пор использованных электрических и стандартных фрикционных двигателей, экономит 70% энергии.
Технические характеристики:
- двойной транспорт: нижний – зубчатая рейка, верхний – шагающая лапка
- высота подъема лапки до 16 мм
- автоматический подъем лапки
- максимальная скорость шитья 2.000 ст/мин
- расстояние между иглодержателем и корпусом швейной машины 33,5 см
- длина стежка до 8 мм
- большой челнок с вертикальной осью
- автоматическая позиция иглы
- автоматическая закрепка
- автоматическая обрезка нитки
- диодное освещение поля шитья
- система игл 135x17 либо 135x17 SERV7
Продается в пакете PREMIUM
STAND TEXI PREMIUM SILVER - стальная, стабильная, прочная и универсальная станина с регулируемой высотой. Окрашеная порошковой краской в серебристый цвет RAL 9006, сочетающийся со стульями линии Ergolinia.
TABLE TOP TW PREMIUM - столешница высшего качества, выполненная из 30 слоев берёзовой клеенной фанеры, прекрасно снижающих вибрации. Поверхность столешницы покрыта специальным ламинатом, устойчивым к ударам, трению, влаге и маслу. Не содержит вредных веществ. Размеры 105x55x4 см (длина x ширина x высота).
